Hydropower 2T 70m Diamond Core Drilling Machine

Name: Hydropower 2T 70m Diamond Core Drilling Machine
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Model Number : ST-200

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-10 days

Packaging Details : Standard Export Package

Condition : New

Type : Core or Rotary Drilling Rig

Power Type : Diesel or Electric

Usage : geological core drilling and physical exploration

Voltage : 220v

Power(W) : 16.2kw

Dimension(L*W*H) : 1730*860*1360

Warranty : 1 Year

Contact Now

OEM Factory Manufacturer Core Drill Rig with Hydraulic Feeding

Product Description:

The ST-200 mobile drilling rig is a kind of widely used and hydraulic feeding drill, which has the characteristics of big power, great lifting force (2T) and high transmission torque. It can be used in engineering geological survey of railway, hydropower, transportation, bridge, foundation and other buildings, geological core drilling and physical exploration and so on.

Product Parameter:

Drilling Rig
Drilling diameter(mm)	75,91,110,130,150,300
Drilling depth (m)	200,150,100,70,50,30
Drill pipe diameter (mm)	42,50
Drilling angle(°)	90~75
Equipment size(L * B * H)	1730 * 860 * 1360 (mm)
Rig weight (except engine)	700
Mobile device
Moving length	350mm
Leave distance	300mm
Gyrator
Spindle speed (four gear) (r/min)	115,230,505,1010
Spindle travel(mm)	450
Spindle no-load lifting maximum moving speed(m/s)	0.05
Spindle no load drop maximum movement speed(m/s)	0.067
Spindle maximum feed pressure(KN)	15
Spindle maximum lifting force(KN)	25
Spindle maximum output torque(KN• m)	1.5
Winch assembly
Winch maximum lifting force (single rope)	20
Reel speed (r/min)	20,39,85,170
Reel circumferential speed(m/s)	0.172, 0.345, 0.738, 1.476
Reel diameter(mm)	140
Wire rope diameter(mm)	9.3
Wire rope density (m)	40
Brake diameter(mm)	278
Brake band width (mm)	50
Pump type	Horizontal single cylinder double acting
Maximum displacement (motor)(L/min)	95 (77)
The maximum allowable pressure (Mpa)	1.2
Work pressure (Mpa)	0.7
Cylinder diameter (mm)	80
Piston stroke(mm)	100
Oil pump
Oil pump type	YBC-20/125
Nominal pressure (Mpa)	12.5
Rated flow(ml/r)	20
Rated speed(r/min)	800-2500
Diesel engine or motor
Diesel engine	1110
Rated power (KW)	16.2
Rated speed (r/min)	2200
Rated pressure(Mpa)	12.5
Motor type	Y160M - 4
Rated power (KW)	11
Rated speed (r/min)	1460

Hydropower 2T 70m Diamond Core Drilling Machine

Product Tags:

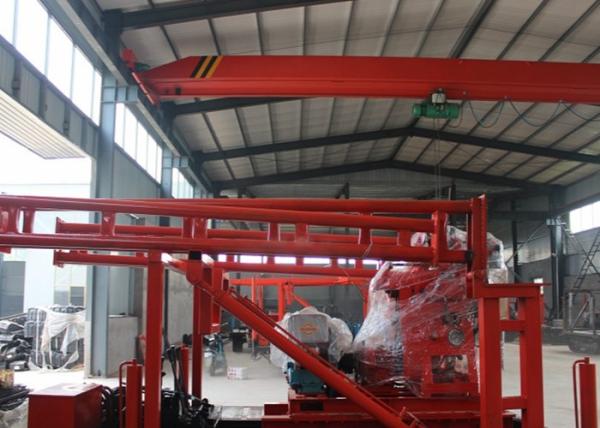

Hydropower 2T 70m Diamond Core Drilling Machine Images
