Borehole Mud Pump Equipped Core Drilling Rig Machine Crawler-Mounted for Mineral Drilling
Product Characteristics:
1. Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.
2. Rubber track,the weight is lighter and does not hurt urban road, suitable for projects in city.
3. Four hydraulic jacks, can lift the machine to max.height 1.3m,so that the machine can be loaded onto and unloaded from truck compartment. Also they can be used for rig leveling and support at work.
4. 24V electric-strat diesel engine reduces the operator`s labor intensity.
5. Independent BW-160 mud pump ,has bigger flow displacement and pressure, easy maintenance.
6. Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.
Product Parameter:
SPECIFICATION FOR Rock Drill For Rock Stone Coal Mine Drilling 100-300m Depth |
| Unity Machine Parameter |
| Drilling depth | 30--200m |
| End hole caliber | 500-75mm |
| Drill rod caliber | 50mm |
| Drilling angle | 90°~75° |
| Drill weight (No include power) | 910kg |
| Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m |
| Spindle |
| spindle speed | 64,128,287,557r/min |
| Spindle stroke | 450mm |
| Hoist |
| Max .single line hoisting capacity | 2400kg |
| Single line lifting speed | 17,35,75,151r/min |
| Tightrope caliber | 12.5mm |
| Tightrope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug floodgate belt width | 70mm |
| Distance between drill and hole | 400mm |
| Mud Pump |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |

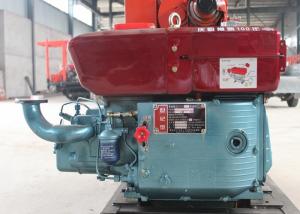

| Diesel engine | S1115 Model 22HP |
| Electric motor | Y160M-4 15kw 1440r/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Water inlet caliber | 40mm |
| Water to exit caliber | 30mm |
