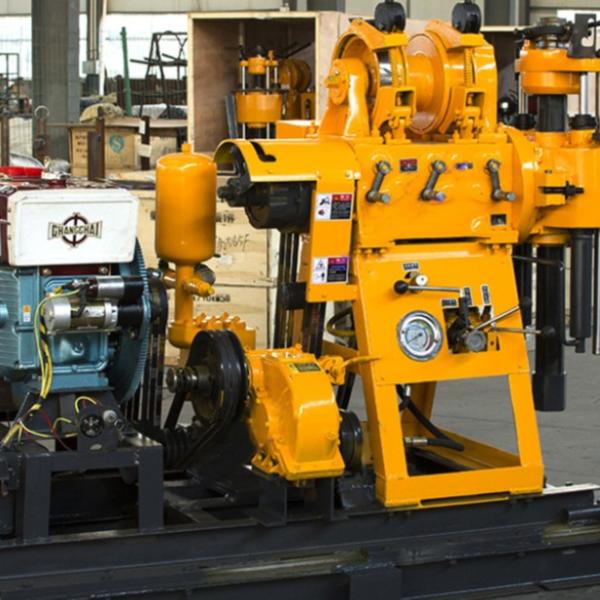

150 Meters Depth OEM Xy-1A Portable Well Drilling Machine Easy Operate

  • 1
  • 2

Brand Name : Shitan

Model Number : XY-1A

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : 6000-8000 USD

Payment Terms : Western Union

Supply Ability : 100 sets per month

Delivery Time : 5-8 work days

Packaging Details : Plastic film and Standard export wooden box

Product name : OEM Xy-1A 150 Meters Depth Portable Water Well Drilling Rig

Drilling Depths : 150 meters

Drilling Way : Rotary

Geological : soil, rock, hard rock,

Transport Package : Wooden Case

Chuck : Hydraulic Chuck

Usage : Water Well ,Soil testing,geological exploration

Net weight : 600 KG

Warranty : 1 Year

Drill angle : 90°-75°

Matched power(diesel power) : 15kw/2200r/min

Active drill rod : 53/59*4200mm

Rod diameter : 50,60mm

Contact Now

OEM Xy-1A 150 Meters Depth Portable Water Well Drilling Rig

OEM Xy-1A 150 Meters Depth Portable Water Well Drilling Rig Introduction

XY-1A Drilling Rig is a high-speed rig suitable for census exploration, Geophysical exploration,road and building exploration and blasting holes and other drilling projects, It can drill 2-9 grade sandy clay and rock formations, etc.

OEM Xy-1A 150 Meters Depth Portable Water Well Drilling Rig Parameters

Drill Swivel Head

Drilling depth

 Max.150m

Spindle speed

 1010,790,470,295,140(r/min)

Hole diameter

 Max.150m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine ZS1105
Hoisting drum revolution

121,76,36(r/min)

 Rated power 12.1KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm

OEM Xy-1A 150 Meters Portable Water Well Drilling Rig Advantages

(1) The rig has oil-pressure actuating system to improve drilling efficiency and reduces the workers’ physical labor.
(2) Uses ball joint instead of chunk to back the lever conveniently and safely without stopping machines.
(3) It has a manometer to show the pressure in the hole.
(4) Operated conveniently as the handles are centralized.
(5) It has compact structure, as rigs, pumps and diesel engines are on one pedestal so that save the space.
(6) Suitable to work on the plain and mountainous areas for it is moved easily with lightweight and simple to disassemble.

OEM Xy-1A 150 Meters Depth Portable Water Well Drilling Rig Application

This kind Diesel hydraulic drilling rig is suitable for drilling in soil layer, quicksand layer and a small amount of rock and soil layer. Now it is mainly used to drill civil draft wells, ground source heat pump air conditioning wells, engineering dewatering wells, drought resistant wells, industrial wells, etc.

150 Meters Depth OEM Xy-1A Portable Well Drilling Machine Easy Operate150 Meters Depth OEM Xy-1A Portable Well Drilling Machine Easy Operate
